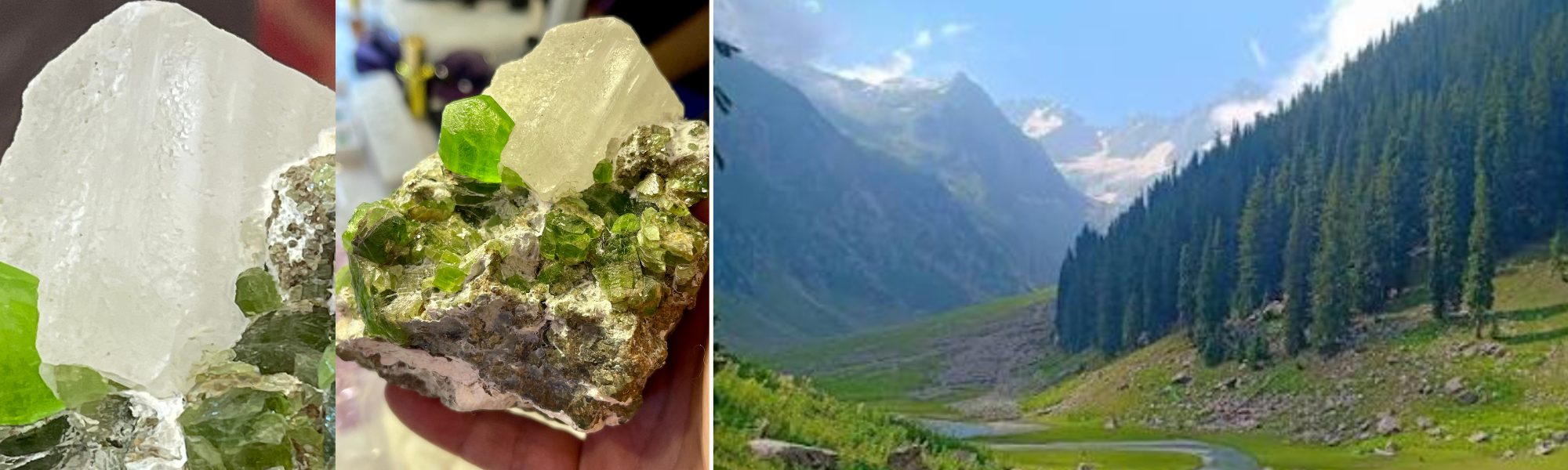

Calcite Beside the Peridot: Reading a New Mineral Story from Sapat, Kohistan

"Some minerals are obvious. Others you have to climb for."

Some minerals and gemstones got our attraction because of their sizes or colors. Some mineral or crystal specimens becomes interesting because of their being in combination on one matrix. The unique findings being discussed in this story tells us 2nd type of mineral specimen. Let's start.

In Islamabad, I met with a gemstone miner from the Kohistan region whom I will call "Anwar." This is not his real name — he asked not to be named because of security so I am using a pseudonym. He does mine in Kohistan. My husband, Adnan Akram, picked the specimen up first which he showed to both of us, then I did.

At first, we were simply looking at a beautiful piece of green olivine. Then we noticed the white crystal.

The two minerals appeared to be associated within the same altered ultramafic material. The green crystals were surrounded by pale matrix and darker fragments of rock, while a large colorless-to-white crystal had a prominent position directly against the olivine.

Adnan and I looked at one another.

"Could that actually be calcite?"

That question changed the specimen.

The miner told us that the white mineral is a calcite. From mere naked eyes, mineral identification cannot be considered definitive, so we have treated it throughout this article as probable calcite or, more conservatively, a carbonate mineral until laboratory testing is performed.

That distinction may sound cautious. Geologically, it is important.

My husband, Adnan Akram, and I had already been looking for unusual mineral material from northern Pakistan. We were not simply looking for another attractive peridot crystal. We were interested in specimens that could tell us something about the rocks in which the crystals actually formed.

When Anwar showed us this piece, the first thing that stood out was the contrast: vivid green olivine crystals scattered through a pale, altered ultramafic matrix, with a surprisingly large white carbonate-looking crystal or aggregate growing directly against the green material.

At first glance, it looked like a striking colour combination.After looking more closely, the association became more interesting.

The specimen raises a much better question than "How beautiful is this peridot?"

What geological process can put gem-quality olivine and carbonate mineralization into the same ultramafic rock?

That question has an important connection to published geological works on Sapat.

Scientists have already documented an unusual mineral association in the Sapat peridotite: olivine + calcite + Cr-rich clinochlore, occurring in veins within dunite and interpreted as evidence of late, volatile-rich fluids related to subduction.

Important Note: This does not mean that the specimen sample is one of the veins described in those papers. However it clarifies the mineral association which is more interesting than it would be in isolation.

The timing is crucial. As Anwar explained, the mining season in northern Pakistan is never long. The heavy snows remains over the high-altitude deposits for much of the year. As soon as snows melts in the ending months of summer—the loose rocks exposed by the thaw—becomes accessible to him and his team.

In this season, stones and crystals are collected from a solid vein what the winter's freeze-thaw cycles have wrestled free from the mountain face. In a matter of weeks, the snows will return. Then, the narrow mine workings will be covered again by ice. In this race against the seasonal clock, Anwar and his colleagues are carrying on a tradition as old as the mountains themselves—searching for the gemstones and minerals.

It was amidst this season of labor that we saw what Anwar called a "special one." The specimen in his hands was striking: a brilliantly colored, blocky green crystal perched atop a stark white matrix, surrounded by jagged remnants of dark, altered rock. As he rolled it over in his hands, we realized that this was not just a pretty rock, but a mineralogical archive. It has within it a chaotic history of violent magmatic crystallization, deep-seated tectonic fracturing, and a subsequent percolation of hot fluids that fundamentally altered its composition.

This is the story of that specimen, the physical evidence of the geological story preserved inside its crystals, and what it can tell us about the complex mineral-forming environment of Kohistan.

What the Specimen Actually Shows

Before getting into tectonics, it's worth being precise about what the specimen actually document, as opposed to what can be inferred from them.

The Peridot

The specimen carries one dominant, well-terminated peridot crystal across its widest face. There are also smaller crystals — some just a few millimetres — rooted directly into the surrounding rock. The large peridot crystal has the short prismatic form capped by dome and pyramid faces that is typical of gem olivine, with faint vertical striations running down several faces.

Color of peridot crystal is olivine green in the main crystal giving darker shade. It has more olivine tone in some smaller and thicker crystals nearby the main crystal.

Transparency of peridot is a good in the main crystal. It contains a scatter of very fine dark inclusions visible under magnification — too small here to identify with confidence. Pakistani peridots are documented to have ordinary chromite inclusions less commonly, needle-like vonsenite–ludwigite crystals (Peretti Gübelin, 1996)

The chemical composition of olivine is (Mg,Fe)₂SiO₄. Its colour is intrinsically yellow-green and is strongly influenced by iron in the crystal structure. GIA gives typical peridot properties of refractive index around 1.65–1.69, specific gravity around 3.34 and Mohs hardness of 6.5–7.

Peridot Properties

• Crystal System: Orthorhombic
• Hardness: 6.5-7
• Refractive Index: 1.654 - 1.690. That's why it sparkles.
• Specific Gravity: ∼3.34 Optics: Biaxial positive. You'd see strong double refraction if you looked through a thin piece.
• Inclusions: Kohistan peridot is often remarkably clean. You might see tiny “lily pad” fractures or gas bubbles, but not the heavy silk of other localities.

Calcite: White Crystal that Got Our Attention Mainly

The green crystal was easy to be praised. The white crystal was harder to explain.

The second mineral is a single blocky, translucent-to-subtransparent crystal, pale cream to colorless which is slightly larger than the peridot crystal. Its face is faintly frosted and striated, with a few flat, cleavage-like partings. It is embeded naturally on the top of the rock above peridot. The crystal has noticeably different texture— coarser, almost mammillary in places, with what looks like an internal growth boundary partway down, as though two generations of the same material met there.

Internal fractures are visible by rust colored lines. It is consistent with a later, separate pulse of iron-bearing fluid moving through cracks that had already formed. None of this identifies the mineral.

Calcite has a trigonal crystal structure. Its Mohs scale hardness is 3. Its characteristics are rhombohedral cleavage. It reacts readily with dilute hydrochloric acid. But testing a specimen with acid would damage the very material we are trying to preserve, so laboratory methods such as Raman spectroscopy, X-ray diffraction or SEM-EDS would be preferable. Here are basic calcite properties:-

• Crystal System: Trigonal
• Hardness: 3
• Cleavage: Perfect rhombohedral in 3 directions
• Reaction: Fizzes in dilute HCl
• Luster: Vitreous to pearly

For now, the scientifically responsible description is:

"a large pale carbonate-looking mineral, provisionally identified as calcite."

And that uncertainty does not make the specimen less interesting.

It makes the question better.

Initial Findings: This formation of peridot and calcite crystal on single matrix shows that there were not formed in a single and simple event. The specimen is telling us the crystal growth history clearly.

Matrix + Peridot + Calcite Association

The two feature crystals sit on a base thick with additional peridot, set in a granular, grayish-white to buff matrix that turns darker brown and porous toward the bottom.

Small dark patches through the matrix could reasonably include magnetite, chromite, or iron-stained serpentine minerals. More confidently observable is the overall texture: a weathered exterior surrounding fresher material immediately around the crystals, the ordinary signature of a dunite that has been serpentinized near its surface while staying comparatively unaltered in the pockets where the gem crystals grew.

This is the biggest oddity. Olivine and calcite are not friends in most geological environments.

Geology of Crystals: Olivine forms in Mg-rich, SiO2-poor, CO2-poor environments: the mantle. Calcite forms in Ca-rich, CO2-rich environments: limestones, skarns. To get both, you need a mixing zone.

In Kohistan, tectonic thrusting has shoved ultramafic rocks right up against carbonate rocks. Hydrothermal fluids moving along the contact zone can leach Mg from the ultramafic and Ca and CO2 from the carbonates. The result is a place where peridot can crystallize, and then calcite can follow. Very few localities in the world produce this combination. Pakistan's Sapat and Dubair areas in Kohistan are one of them.

Kohistan Valley

Olivine is one of the major minerals of Earth's upper mantle. Rocks dominated by olivine, particularly dunite and peridotite, form under high-temperature conditions and are strongly associated with the mantle and with ultramafic portions of ancient tectonic systems.

The overall impression is therefore not of a single generation of perfectly preserved crystals, but of coarse olivine mineralization within a much more complicated host environment.

That observation fits remarkably well with what earlier geological work has established about the Sapat occurrence.

Jan and Khan's 1996 study described gem peridot from the Sapat mafic-ultramafic complex as occurring in pockets and veins within shear zones in partially serpentinized dunite. They reported associations with serpentine, minor magnetite, and locally magnesite and talc.

So the matrix is not just background material.

It is part of the geological evidence.

Important: The contact between them is important. There's no sign of the calcite etching or replacing the peridot. That suggests they grew in sequence, not simultaneously. The peridot formed first in a higher-temperature fluid, then as the system cooled, calcite precipitated.

The Geological Story: How Peridot and Calcite Ended Up Together

Many people are of the view that peridot as a single crystal in basalt like it is in Arizona. One can find scattered in grains in lava but not big or display worth cluster like this which is grown with calcite.

Sapat tells a different story.

The geological studies of Sapat describe gem olivine occurring in fluid-derived veins and pockets within dunite. Later research has continued to use Sapat olivine as an example of gem-quality olivine associated with fluid migration through sub-arc mantle.

 This is actually uniqueness of the Kohistan material. Here is most likely the sequence of becoming these crystals on one rock.

Stage 1: The Parent Rock

That was the starting point. A ultramafic body, probably a dunite or harzburgite. This rock is 90% olivine which is formed deep in the mantle, part of the Kohistan Arc's root.

Stage 2: Serpentinization and Fracturing

As the arc collided and rose, water-rich fluids moved through the rock. This caused serpentinization: olivine reacting with water to form serpentine minerals. This process creates fractures, vugs, and open spaces. It also releases magnesium and silica into the fluid.

Stage 3: Peridot Crystallization

The simplest version of the story would be:

mantle rock → serpentinization → cavity → peridot crystals.

But that version is too simple for Sapat. The geological history is more interesting.

The original material included refractory mantle peridotite, including harzburgitic rocks. Then primitive melts associated with the ancient Kohistan arc moved through those rocks.

As those melts interacted with the pre-existing mantle, they modified it. The result included the formation of olivine-rich dunite. Its ultimate geological setting was indeed the mantle beneath an ancient volcanic arc.

But the rocks were subsequently modified by melts, deformation and fluids.

Not all olivine was destroyed. In pockets where fluids were Mg-rich and SiO2 activity was just right, new olivine crystallized. But this time, it crystallized slowly in open cavities, not as grains in solid rock. That slow growth in a cavity is what allows for the formation of distinct, faceted crystals instead of just sand. The green color comes from iron in the olivine structure.

Kohistan peridot tends to be more iron-rich than some deposits, but still forsteritic enough to stay bright yellow-green instead of going brown. The neon color is key. Gemologists believe the intense yellow-green of Kohistan peridot comes from a specific Fe2+ to Fe3+ ratio and very low chromium. Combined with the high clarity and lack of inclusions, the crystals transmit light extremely efficiently.

The specimen records that complicated history.

Stage 4: Calcite Comes Last

This is where our specimen becomes particularly interesting. Fresh dunite is dominated by olivine and is not a calcium-rich rock. So a large carbonate crystal is not something we would automatically expect to see as a primary constituent of fresh dunite.

But the Sapat literature provides an important exception.

The published research does not merely mention carbonate somewhere in the district.

It specifically documents calcite–olivine-bearing veins in the Sapat mantle rocks.

The 2012 study went further. Its isotopic data indicate that the vein minerals formed from H₂O–CO₂-rich fluids that had interacted with the mantle. The authors discuss the significance of carbonate dissolution and the mobility of carbon in subduction-related fluids.

That is much more scientifically interesting than saying:

"The calcite probably came from nearby limestone."

We should not make that claim.

There is no basis for saying that the white crystal in our specimen formed from a specific nearby limestone body.

The published evidence instead points toward a subduction-related, carbon-bearing fluid system interacting with mantle rocks.

In other words, the carbon-bearing fluid did not necessarily need to arrive as a piece of limestone.

It could arrive as part of a much larger geological cycle involving fluids and carbon moving through a subduction system.

However briefly described, after the peridot formed, the fluid chemistry changed. As temperatures dropped and CO2 became available, likely from decarbonation of nearby limestones during metamorphism, calcite began to precipitate. Calcite loves to fill the last open space. That's why you see the big blocky calcite crystal sitting next to the peridot, not replacing it. The peridot made a scaffold, and then calcite grew in the remaining void. The white, chalky matrix around the base is probably a mix of altered serpentine, clay, and microcrystalline calcite.

Geology Facts: This paragenesis — peridot first, calcite second — is unusual. It is not common at many localities with peridot deposits to have carbonate which can produce big size calcite crystals. However, Kohistan region is unique to have this. The reason is that it sits next to thick metamorphosed limestone and marble in the Himalaya.

The white mineral is what changes the story

The most astonishing and unique feature for this specimen is definitely a Large size white crystal sitting on the top of the specimen near by green olivine.

The miner identified it as "calcite".

That identification is plausible, and, more importantly, calcite is scientifically documented from the Sapat ultramafic system. There is need to do testing such as test such as Raman spectroscopy, XRD or SEM-EDS to document actual characteristics of the stone. This is necessarily to be done because a common study about olivine is that an olivine-rich ultramafic rock should have minerals belonging to an ultramafic assemblage.

This is not the case with calcite. This is not a primary mineral which can be expected to dominate a fresh dunite.

Its presence therefore suggests a later process.

And this is exactly where Sapat's published geology becomes especially relevant.

Bouilhol and colleagues reported calcite–olivine-bearing veins in the Sapat mantle rocks. They interpreted them as having formed from volatile-rich fluids derived partly from a subducting system. Their 2012 study in The Canadian Mineralogist used oxygen, carbon and strontium isotope data, together with mineral chemistry, to investigate the origin of the veins. [2]

The authors concluded that the veins formed from H₂O–CO₂-rich fluids that had interacted with the mantle, with evidence for additional elements including boron.

That is a very different geological story from simply saying that "calcite grew beside peridot."

Dark minerals on Matrix of The Specimen

Me and Adnan also looked at different areas of the specimen within matrix which looked darker around the olivine. Some looked metallic and some were having sub-metallic appearance.

Magnetite is already a documented mineral from Sapat. Jan and Khan reported minor magnetite association with the gem peridot such as it is in the below peridot specimen where whole body is magnetite.

Specimen in Focus · Sapat, Kohistan

A Rare Geological Record: Peridot on Magnetite Matrix

This 382g specimen is one of the few documented examples from Sapat about olivine combination with a large magnetite matrix — a combination that reflects the multi-stage serpentinization and fluid history of the Kohistan arc-mantle. Magnetite at Sapat is not incidental; it is a by-product of olivine reacting with water, making this piece a mineralogical record of the same geological forces described throughout this article.

Available to Buy

382g Peridot on a Large Magnetite Matrix
Sapat, Kohistan, Pakistan

A unique example of the olivine–magnetite association documented from the Sapat peridotite.

$650.00 USD

View & Buy This Specimen →

Later studies have also documented magnetite and titanomagnetite in Sapat's ultramafic rocks. Dark opaque material is best to be interpreted as magnetite.

The coexistence of olivine + serpentinized ultramafic matrix + magnetite is geologically coherent.

Sapat is not an ordinary peridot deposit

The geological setting of Sapat is one of the reasons these specimens are scientifically interesting.

The Sapat Valley is part of the Kohistan paleo-island arc, an ancient Cretaceous arc now exposed in northern Pakistan. "Kohistan" gets used two ways, and it's worth separating them. The Kohistan District is an administrative unit in Khyber Pakhtunkhwa province of Pakistan. Kohistan terrane is a much larger geological unit, a slab of ancient island arc that stretches across parts of several districts, including the Kaghan Valley of Mansehra District, where the Sapat deposit sits (Mindat.org locality data; Jan & Khan, 1996).The name "Kohistan peridot" is usually a material that is coming from this broader terrane. This is not limited to the modern district boundary — and Sapat itself is sometimes spelled Supat in older gemological writing (Dost, 2014).

The terrane came into existence or formed far from where it is now. This is result of the chain of volcanoes building itself in the Neo-Tethys Ocean, above a slab of oceanic crust sinking northward beneath the margin of Asia. A totally different than today's Japan. That arc is Kohistan. For tens of millions of years ago before India, volcanoes kept erupting and accumulating crust. Still an island continent is drifting towards the north, collided with it. In the recent research work, they have dated the end of arc volcanism. This is the more commonly cited figure for full suturing of Kohistan between India and Asia is closer to 50 million years ago. This is the first contact with India, to around 60 million years ago (Hong et al., 2025). In any way, the arc was thrust and squeezed onto the northern edge of the Indian plate along with the major fault system now called the Indus Suture Zone, also known regionally as the Main Mantle Thrust.

The Sapat Complex is one of those places: a roughly 12-by-1-kilometre region of meta-harzburgite, dunite, pyroxenite, and metagabbro sitting directly in the hanging wall of the Indus Suture Zone (Bouilhol et al., 2009), generally interpreted as the sub-arc mantle and crust–mantle transition zone of the Kohistan arc rather than an intact slice of ordinary ocean floor. The Sapat peridotite itself is approximately 12 km long and about 1 km wide. [4]

Sapat Valley, Kohistan

This geological position is significant. Sapat rocks are part of the mantle and crust-mantle transition. This happened in result of the ancient Kohistan arc instead being a part isolated piece of oceanic mantle.

In simple terms, the rocks have recorded a geological history of a period when hot, chemically primitive magma was moving through the mantle beneath an ancient volcanic arc.

Later, fluids moved through the same rocks.

That sequence is important.

The Significance and Geologic Value

The value of this specimen is definite from a geological perspective. This is kind a textural textbook value. For a mineralogist, this specimen offers a chance to study:

1. Crystal Growth: How a perfect euhedral crystal form from a highly chaotic and hydrothermally active environment. The crystal within a sea of broken material suggests at the micro-scale, there were localized zones of stability within the larger chaotic vein system.

2. Alteration Mechanisms: The white material isn't just a separate vein; it appears to be a replacement or secondary overgrowth, hinting at a complex chemical exchange between the fluids and the rock.

3. Vug-Filling: The crystal grew in an open space. This implies that the vein or fracture wasn't immediately sealed by the crushing weight of the mountain; instead, it remained open long enough for a fluid to deposit minerals.

Research into the Kohistan region, specifically by institutions like the Geological Survey of Pakistan and the Pakistan Museum of Natural History, has documented the presence of peridot (often referred to locally as "Supat peridot" after a specific locality). While much of the research focuses on the gemological qualities of the loose stones, less has been published in the global scientific literature regarding the exact structural associations and hydrothermal paragenesis of these specific matrix specimens. The lack of widespread documentation on this specific type of "matrix association" makes Anwar's find a genuine link to the broader, under-explored scientific understanding of the Kohistan Arc's secondary mineralization.

It is worth noting, however, that if one were to subject this sample to XRD, it would not be surprising to find that the white matrix is actually a mix of talc, magnesite, and calcite, rather than a single pure mineral, providing a multi-stage timeline of fluid interactions. This level of detail, however, requires the SEM-EDS and Raman investigations mentioned earlier.

How unusual is this specimen?

There are two different meanings of "rare" that should not be confused.

The first is rarity of the mineral itself.

Olivine is not an exceptionally rare mineral in Earth terms. It is one of the major minerals of the upper mantle.

The second is rarity of a particular combination of size, colour, transparency, crystal form and mineral association.

That is where this specimen becomes interesting.

Large gem-quality olivine crystals are uncommon enough to attract serious attention, but a specimen combining multiple attractive olivine crystals with a conspicuous carbonate mineral and an altered ultramafic matrix has additional geological value.

What the specimen can—and cannot—tell us

From looking at the specimen, several observations can be told:

• The specimen contains many green, olivine-like crystals.
• At least one peridot crystal has good visible strong green colour.
• A large pale white mineral aggregate is closely associated with the olivine.
• The matrix is strongly heterogeneous and appears partly altered.
• Dark opaque material is present.
• The overall appearance is compatible with an altered ultramafic host.

The geological interpretation is more cautious:

The specimen could represent mineralization associated with fractures, veins or pockets in serpentinized dunite, and the olivine–carbonate association is consistent with the documented Sapat mineral system.

That uncertainty does not weaken the story.

It is actually what makes the specimen worth investigating.

Frequently Asked Questions

Is the colorless crystal in Pakistani peridot specimens always calcite?

Not necessarily. Published geological work on the Sapat deposit in Kohistan describes both calcite-bearing and magnesite-bearing associations with gem peridot, depending on which part of the deposit and which study is consulted.

Where exactly do Pakistani peridot specimens from Kohistan come from?

Most gem-quality peridot from this region is mined from the Sapat Complex, in the Kaghan Valley of Mansehra District, within the broader Kohistan geological terrane of northern Pakistan. The deposit sits in dunite exposed along the Indus Suture Zone, the fault system marking where the Kohistan arc collided with the Indian Plate.

What makes Kohistan an unusual source of gemstones compared to other peridot localities?

Most of the world's peridot, including material from Arizona and Hawaii, arrives at the surface as xenoliths — fragments torn loose and carried up quickly by basaltic magma. Kohistan's peridot instead crystallized in place, in veins and pockets within an exposed section of ancient arc mantle, after the host rock had already been thrust to the surface. That different, slower origin is part of why crystals from this locality tend to be well formed and comparatively clean.

Why is peridot mining in Kohistan limited to certain months?

The workings are at high altitude and become inaccessible under snow for a large part of the year. Mining activity is concentrated into the months when the site can be reached, which limits both the volume and the timing of new material entering the market.

How reliable is a miner's account of where a specimen came from?

Reasonably reliable as a starting point, but not the same as independent confirmation. Locality attribution based on a miner's report — as with this specimen — reflects trade knowledge and the recognizable look of Sapat material, not geochemical fingerprinting. Where the exact locality matters scientifically, it would need to be verified independently.

Conclusion:

A Small Piece of a Big Collision, this specimen is a contradiction. It's soft and hard. It's mantle and crust. It's ancient and brand new.

30 Kilometers down, the peridot started to form as part of the Earth's mantle. The calcite crystals is coming from limestone which was once a tropical sea floor. Tectonic movements brought them together, fluids crystallized them. And a gemstone miner, named Anwar brought them out during a 3-month tough window during the period when the mountains snow melts down.

That's why it's geologically interesting. This is not just because it's olivine green and pretty color, but because it shouldn't logically exist. This is unique as olivine and calcite don't normally share a cavity. Moreover, neon peridot doesn't normally grow to up to 2cm on display matrix. And people don't normally mine gems at 3500 meters with snow coming in 6 weeks.

When you hold it, you're holding the Himalaya in the process of being made.

A collision. A fluid. A crystal.

A season. And for now, before the snow comes again, it's here on a table in Islamabad.

References

• Bouilhol, P., Connolly, J.A.D., Burg, J.-P. (2011). Geological evidence and modeling of melt migration by porosity waves in the sub-arc mantle of Kohistan (Pakistan). Geology, 39(12), 1091–1094.
• Bouilhol, P., Schmidt, M.W.,Burg, J.-P. (2015). Magma transfer and evolution in channels within the arc crust: The pyroxenitic feeder pipes of Sapat (Kohistan, Pakistan). Journal of Petrology.
• Bouilhol, P., Burg, J.-P., Bodinier, J.-L., Schmidt, M. W., Dawood, H., Hussain, S. (2009). Magma and fluid percolation in arc to forearc mantle: Evidence from Sapat (Kohistan, Northern Pakistan). Lithos, 107, 17–37. DOI: 10.1016/j.lithos.2008.07.004. This study is particularly important for understanding melt migration, dunite formation and later fluid interaction.
• Bouilhol, P., Burg, J.-P., Bodinier, J.-L., Schmidt, M. W., Bernasconi, S. M., Dawood, H. (2012). Gem olivine and calcite mineralization precipitated from subduction-derived fluids in the Kohistan arc-mantle (Pakistan). The Canadian Mineralogist, 50, 1291–1304. DOI: 10.3749/canmin.50.5.1291. This is the most directly relevant scientific reference for the calcite–olivine association discussed here.
• Hong, et al. (2025). Magmatic records of subduction initiation and early building of the Kohistan Island Arc, Pakistan. Terra Nova.
• Jan, M. Q., Khan, M. A., Qazi, S. (1993). The Sapat mafic-ultramafic complex, Kohistan arc, North Pakistan. Geological Society, London, Special Publications, 74, 113–121. DOI: 10.1144/GSL.SP.1993.074.01.09. The work establishes the broader geological character and arc setting of the Sapat complex. https://www.mindat.org/reference.php?id=15942002
• Kausar, A.B., Khan, T. (1996). Peridot mineralization in the Sapat ultramafic sequence, Naran-Kohistan, Pakistan.
• Kazmi, A.H., Jan, M.Q. (1997). Geology and Tectonics of Pakistan. Graphic Publishers, Karachi.
• Peretti, A., Gübelin, E.J. (1996). New inclusions in Pakistani peridot: Vonsenite–ludwigite needles. JewelSiam, 6(6), 68–69.
• Dost, P. (2014). Peridot from Supat, the land of mountains. In Peridot Uncommon Green Gem Minerals, 12th Annual Sinkankas Symposium. Pala International.
• Bilqees, R., Jan, M. Q., Khan, M. A., Windley, B. F. (2016). Silicate-oxide mineral chemistry of mafic-ultramafic rocks as an indicator of the roots of an island arc: The Chilas Complex, Kohistan (Pakistan). Island Arc, 25, 4–27. DOI: 10.1111/iar.12130. This provides wider context for the mafic–ultramafic roots of the Kohistan island arc.
• Geological Survey of Pakistan. Gems and Gemmology in Pakistan. The GSP material documents the physical and optical characteristics of Sapat peridot, including its crystal habits, colours, transparency and association with altered material.
• GIA, Gems Gemology. Research summaries on peridot note Kohistan/Pakistan as an important source and discuss the hydrothermal and subduction-fluid interpretations proposed for Sapat material.
• Horn, I. et al. (2020). Serpentinization, Deformation, and Seismic Anisotropy in the Subduction Mantle Wedge. Geochemistry, Geophysics, Geosystems. The study uses Sapat rocks to investigate serpentinization and deformation in subduction-related mantle.

Research caution: I have deliberately not treated the miner's name, exact mine, current mining pocket, or the claim that this particular specimen comes from the exact vein studied in the scientific literature as independently verified facts. The published research establishes the geological setting and the existence of closely related olivine–calcite mineralization at Sapat; linking this individual specimen to that documented mineralization would require locality documentation and mineralogical/chemical testing.
